2016-P Cumberland Gap Quarter Die Varieties
Doubled Die Reverses
| Designation | Description | Image |
|---|---|---|

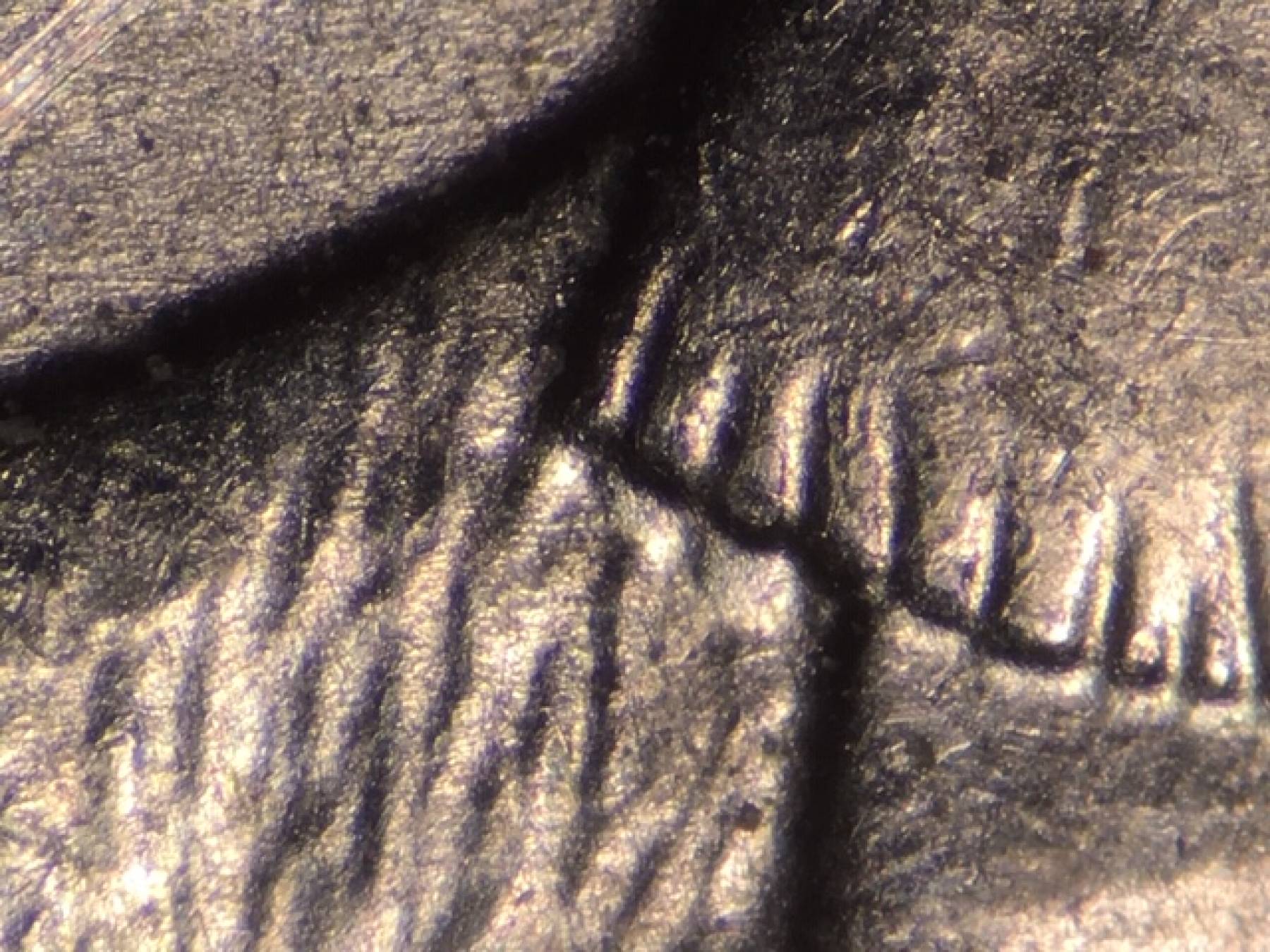

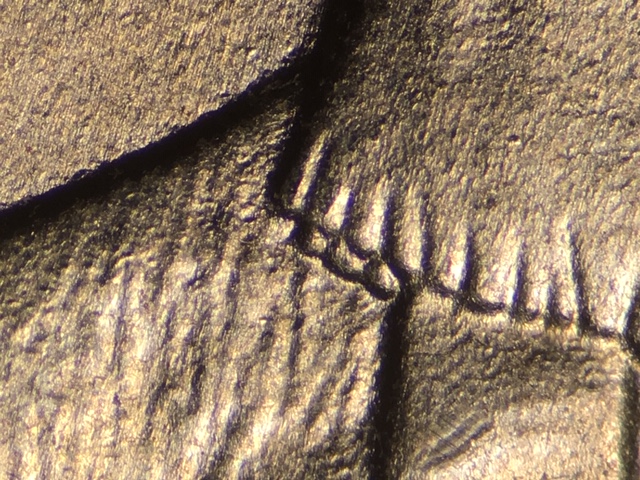

| SDDR-001 | The fringe of the coat to the left of the upper right arm is doubled to the south. Cross-References: WDDR-008 Die Markers: Obverse: Stage A: Die gouge to the left of the second S in STATES. Stage B: Stage A marker no longer present. Die gouge touches the left side of the T in STATES. Reverse: Stage A: None known. Stage B: Two die cracks formed between the top of the hat and the GA in GAP. |  |
| Designation | Description | Image |

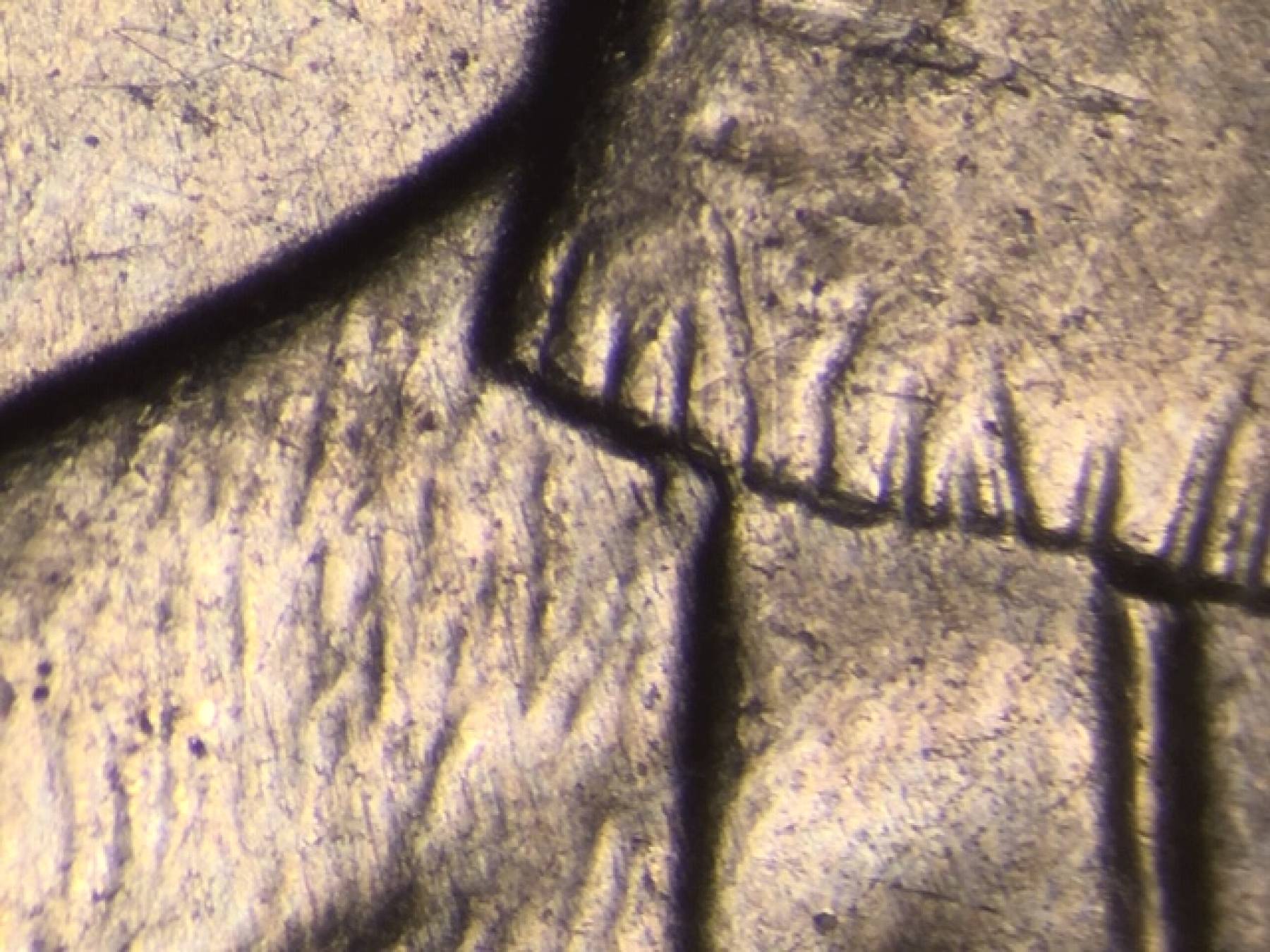

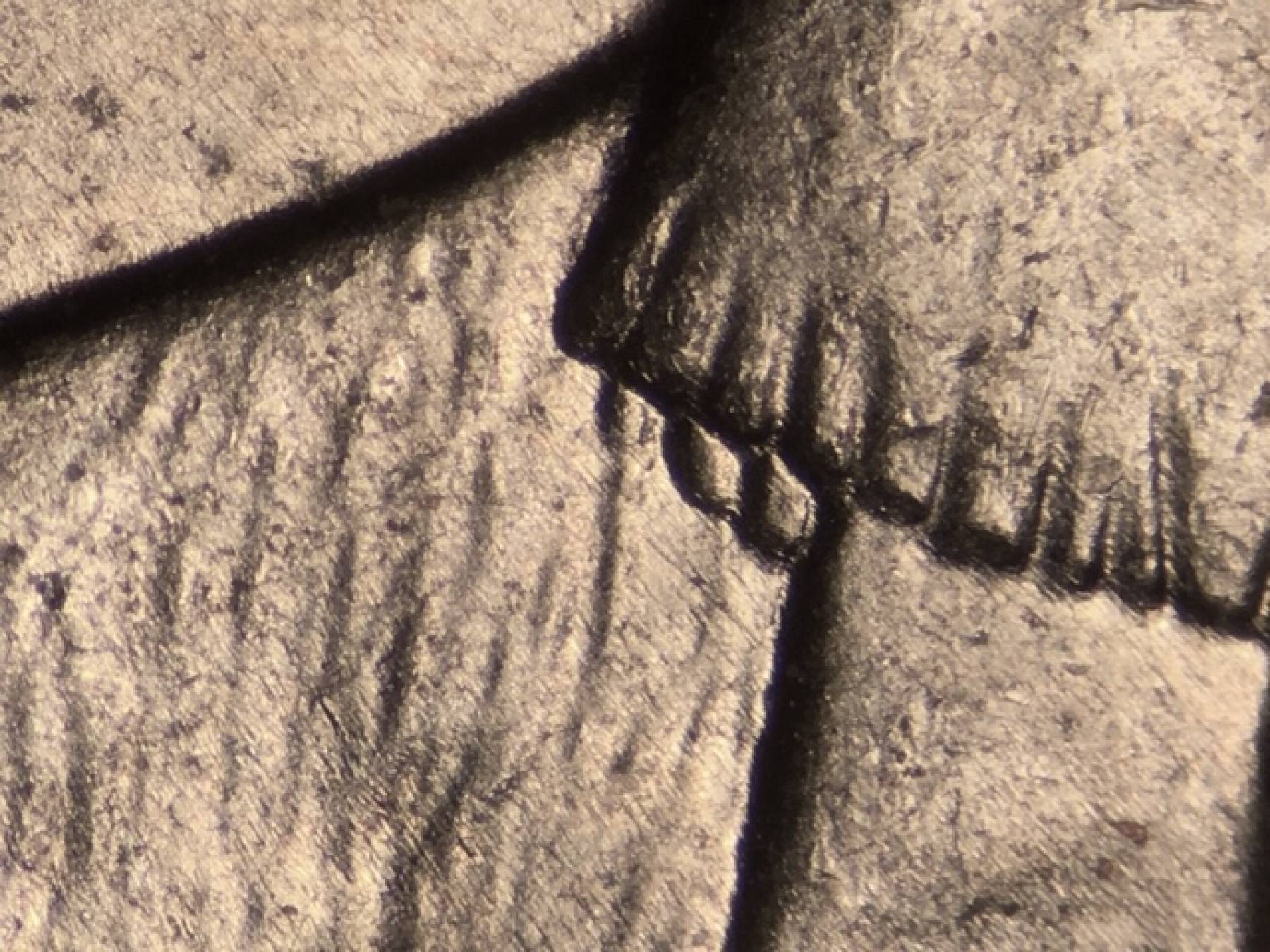

| SDDR-002 | The fringe of the coat to the left of the upper right arm is lightly doubled to the south. Die Markers: Obverse: Die gouge to the right of the N in IN above the W in WE. Reverse: Small die gouge above the E in WEST. |  |
| Designation | Description | Image |

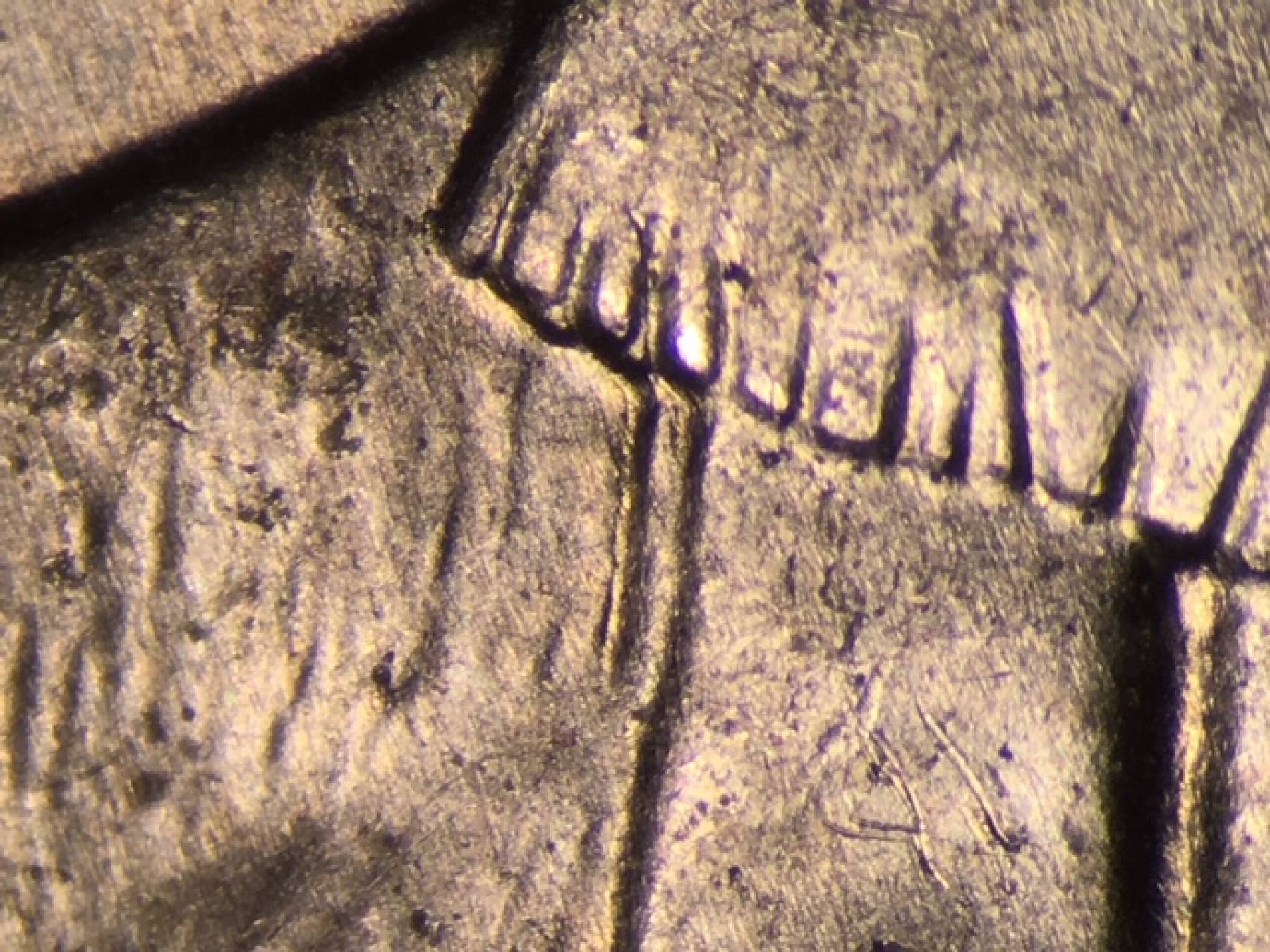

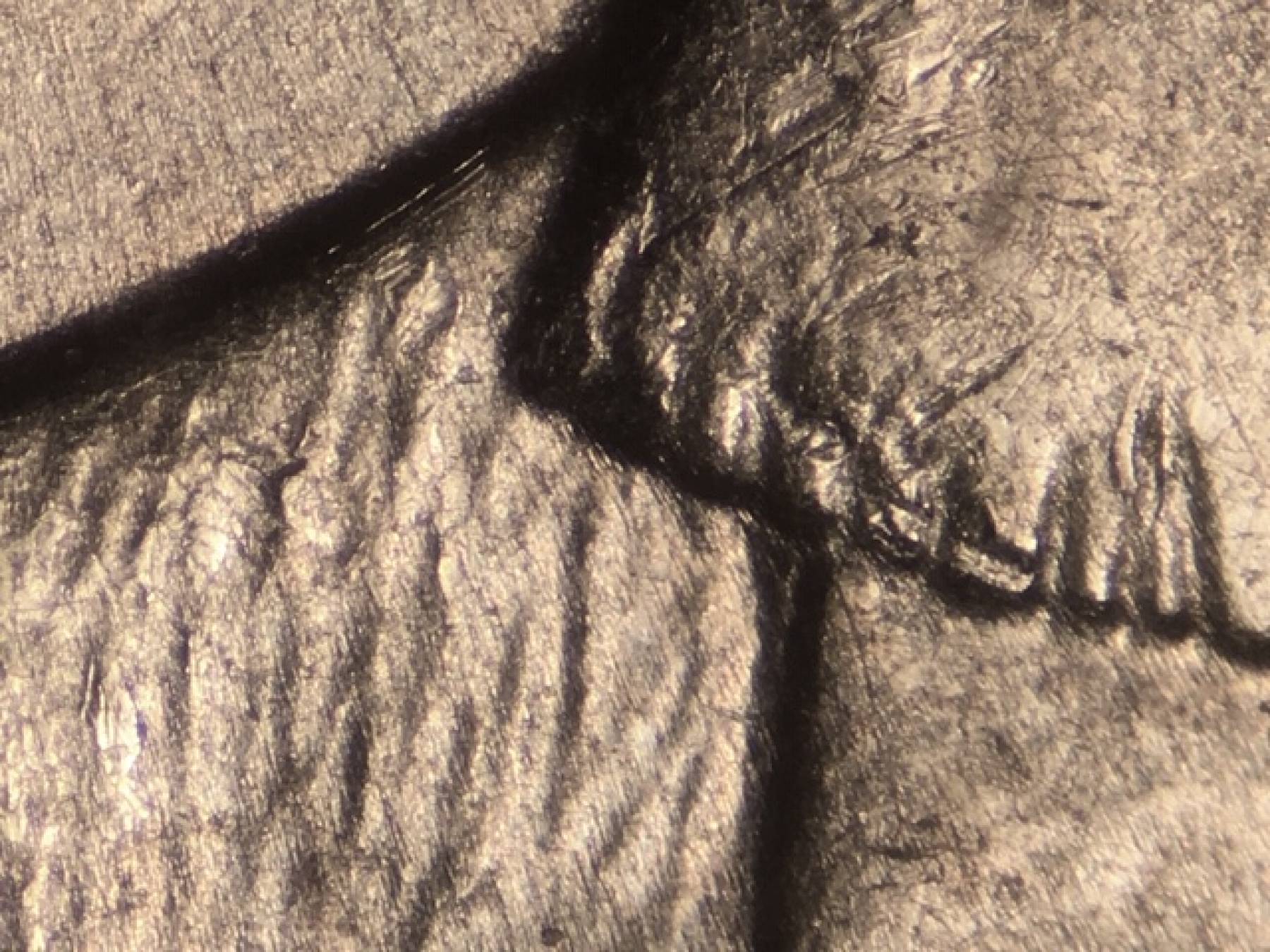

| SDDR-003 | The fringe of the coat to the left of the upper right arm is lightly doubled to the south. Die Markers: Obverse: Small die chip northeast of the designers initials JF and a pre-die break depression northwest of the initials. Reverse: A few small die gouges above the brim of the hat. Die gouge near the hill below the W in WEST. |  |
| Designation | Description | Image |

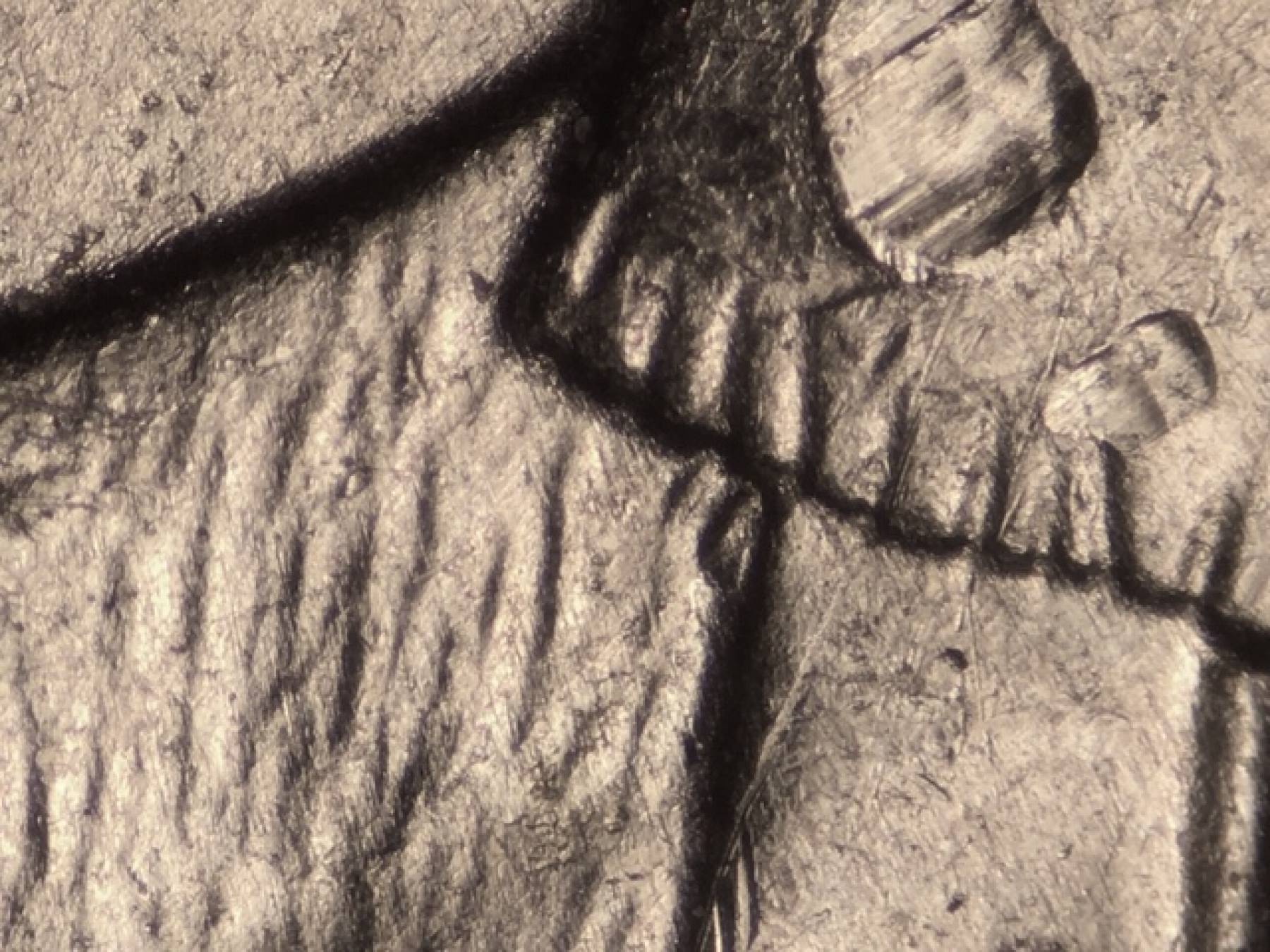

| SDDR-004 | The fringe of the coat to the left of the upper right arm is doubled to the south. Cross-References: DDR-001, WDDR-001 Die Markers: Obverse: Die gouge touches the inner left corner of the first T in STATES. Die gouge touches the inside of the U in QUARTER. Reverse: Die gouge left of the shoulder. |  |
| Designation | Description | Image |

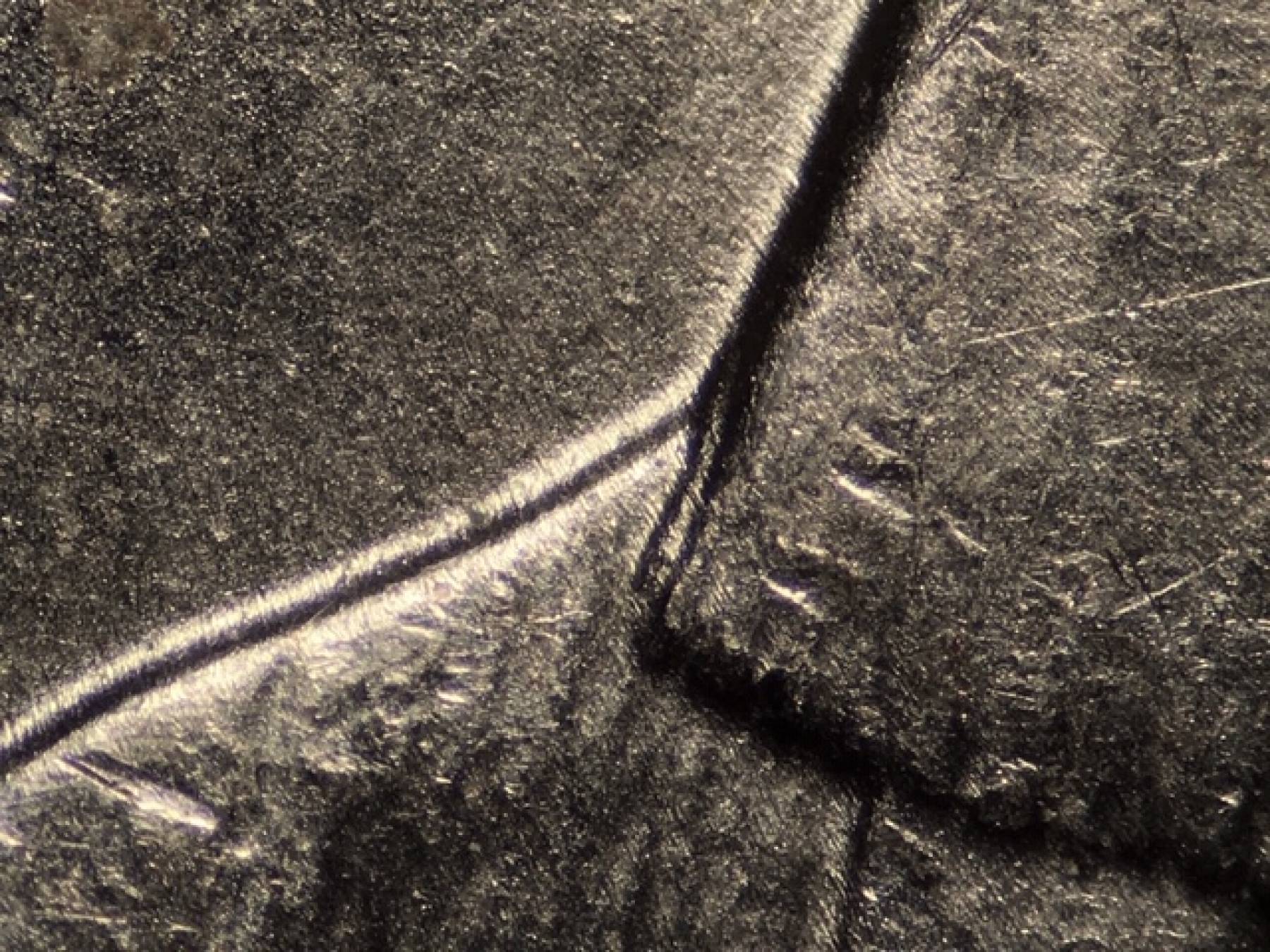

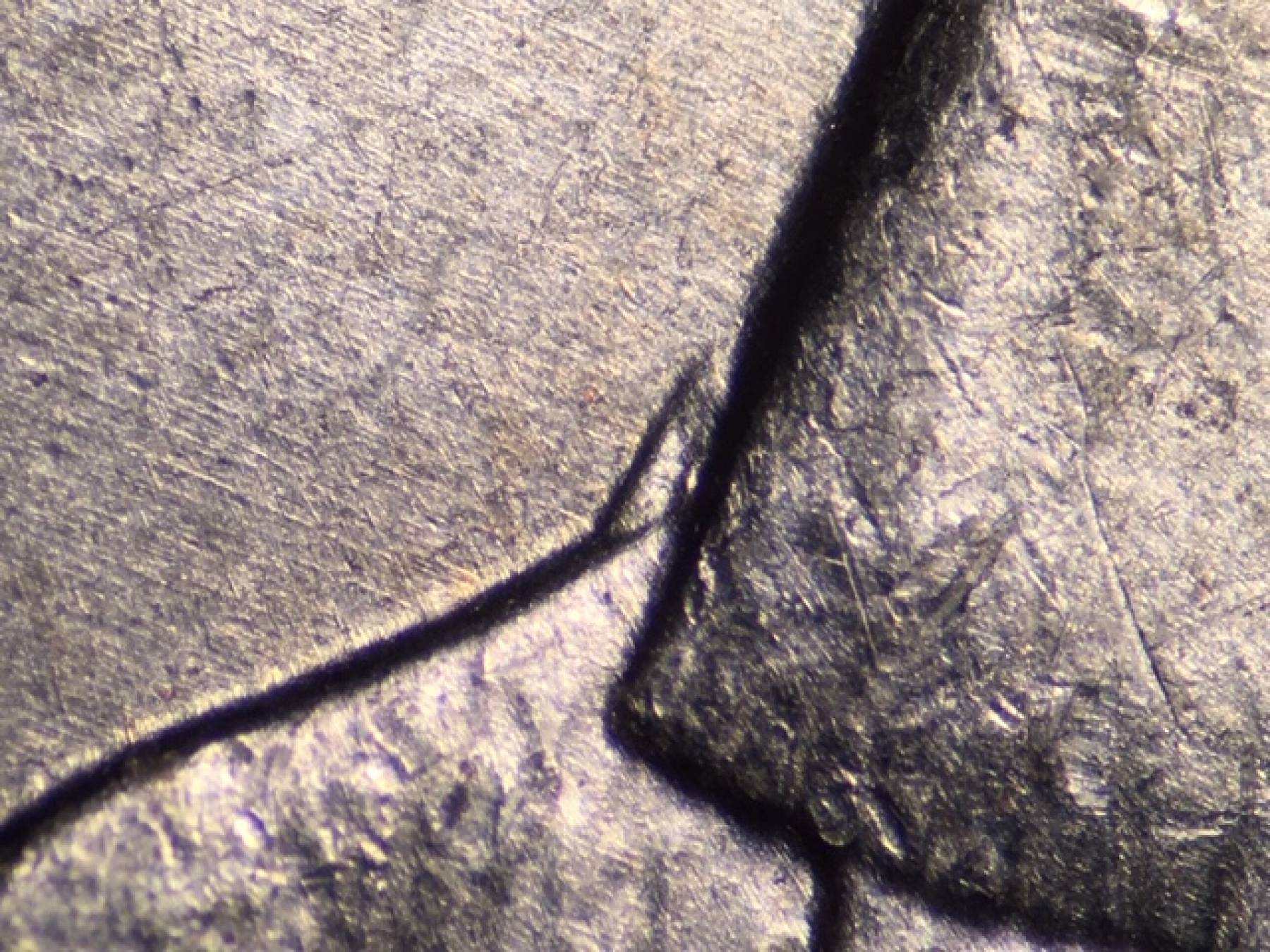

| SDDR-005 | The upper right arm and part of the coat fringe is doubled to the west. Cross-References: DDR-002, WDDR-004 Die Markers: Obverse: Stage A: Die gouge touches the left side of the T in LIBERTY. Stage B: WDDR-004. It is not known whether the Stage A marker is still present. Die gouge between the U and A in QUARTER. Reverse: Stage A: Short die scratch in the left side of the W in DOORWAY. Stage B: WDDR-004. It is not known whether the Stage A marker is still present. Die gouge above the right side of the O in TO. |  |
| Designation | Description | Image |

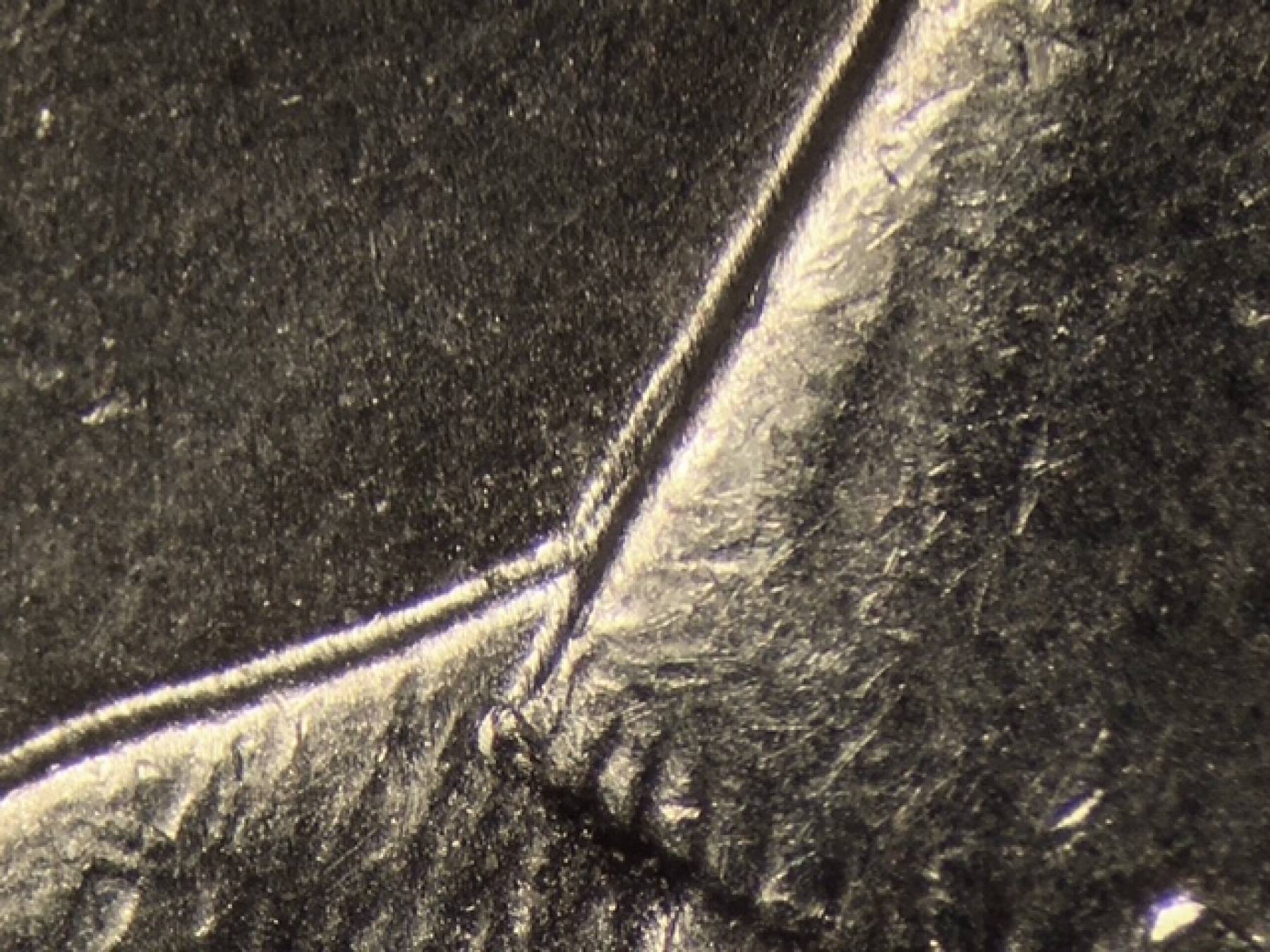

| SDDR-006 | The coat on the upper right arm is doubled to the north. Cross-References: WDDR-002 Die Markers: Obverse: None known. Reverse: Die gouge inside the upper right of the R in DOORWAY. |  |
| Designation | Description | Image |
| SDDR-007 | The coat on the upper right arm is doubled to the north. Die Markers: Obverse: Die chip between the J and F in the designers initials JF. Die gouge far above the I in LIBERTY. Reverse: Die crack between the top of the hat and the GA in GAP. Die gouge touches the top of the T in TO. Die gouge above the right side of the W in DOORWAY. |  |
| Designation | Description | Image |
| SDDR-008 | The coat on the upper right arm is doubled to the north. Cross-References: WDDR-007 Die Markers: Obverse: Stage A: Die gouge touches the upper left of the O in GOD. Die gouge to the right of the T in LIBERTY. Stage B: WDDR-007. It is not known whether the Stage A markers are still present. Reverse: Stage A: The precursor to a die crack is visible below the G in GAP. Stage B: WDDR-007. Die crack formed and developed into a die break. |  |
| Designation | Description | Image |

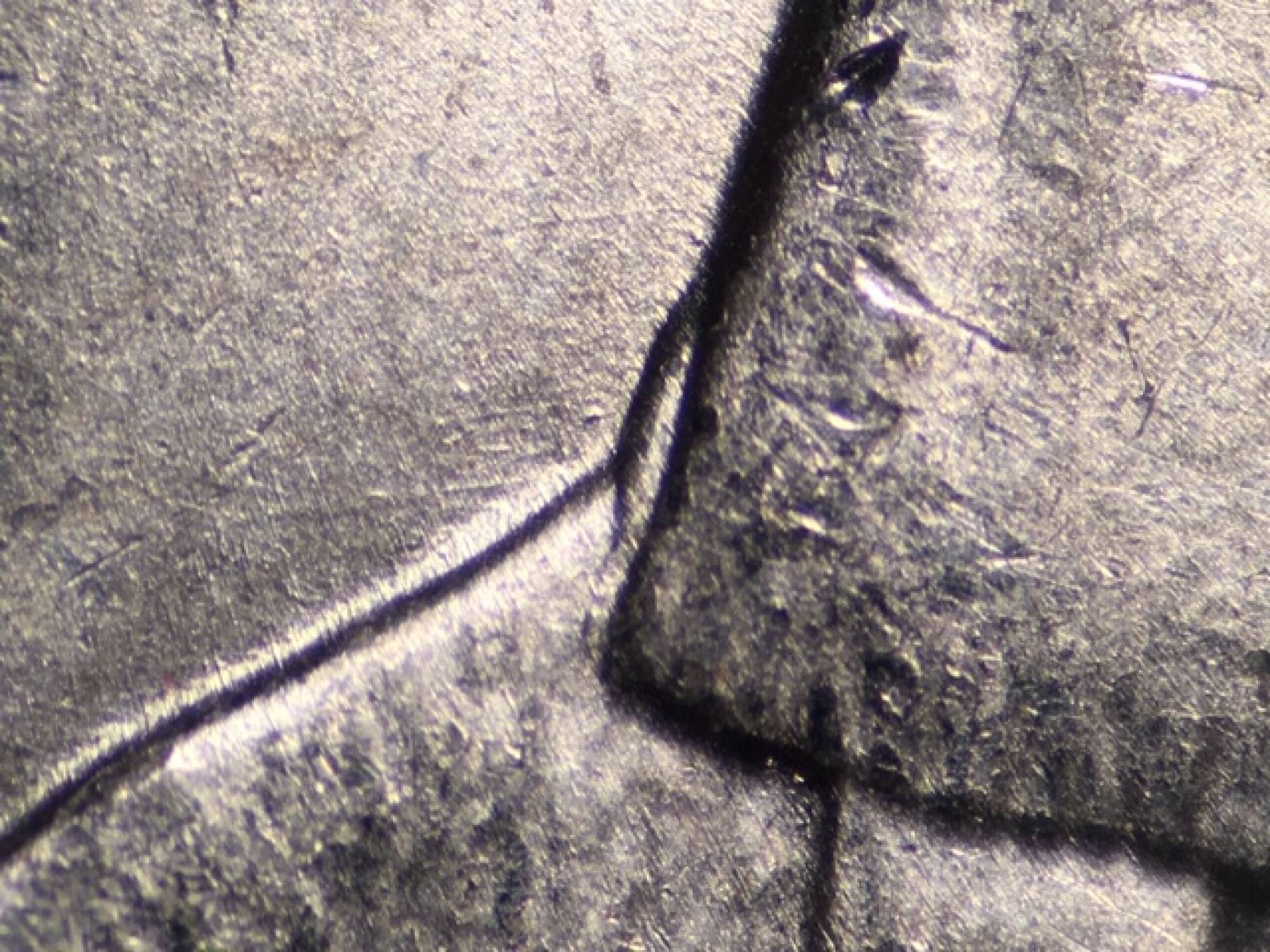

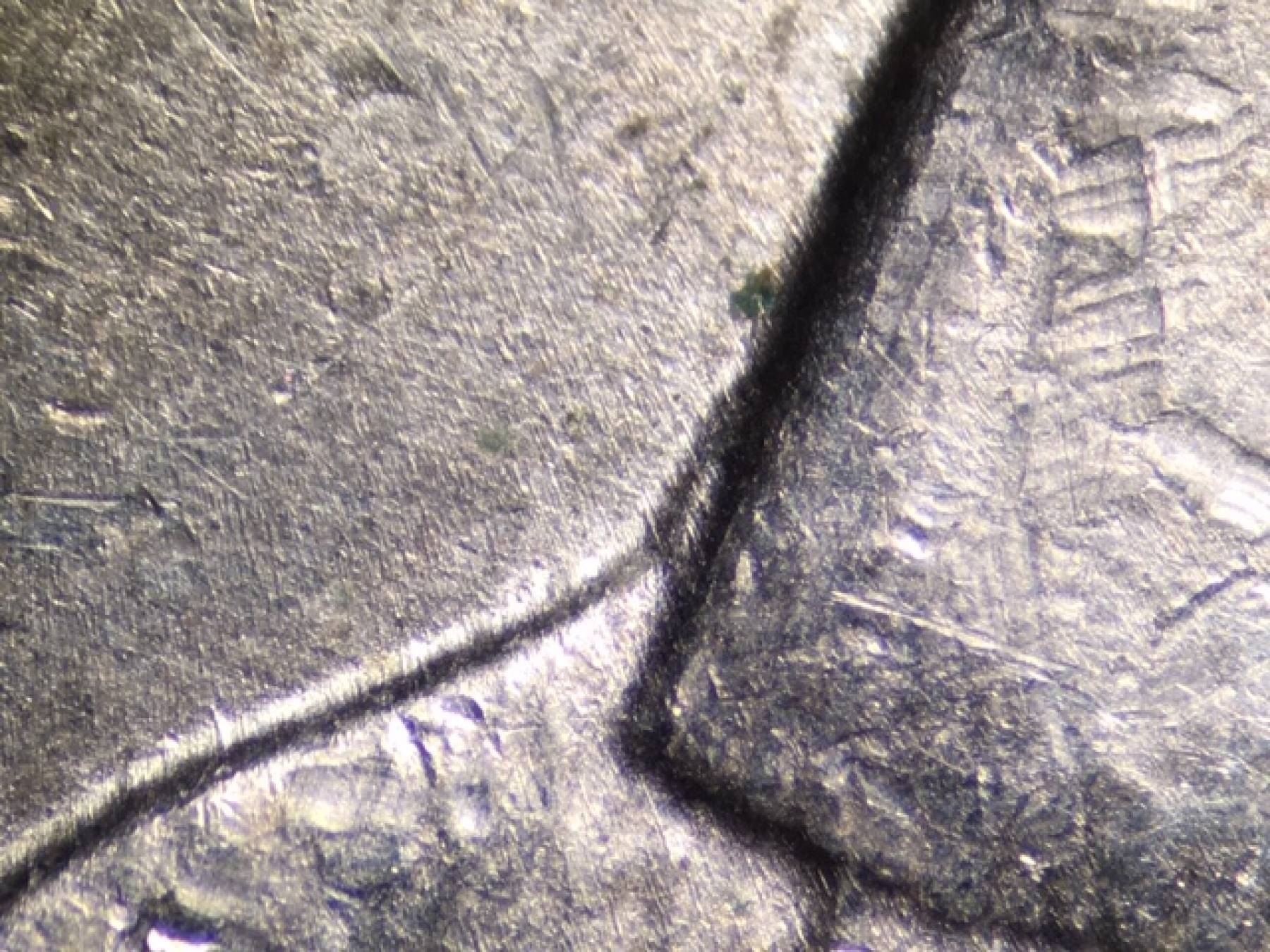

| SDDR-009 | The upper right arm just below the coat sleeve is doubled to the west. Cross-References: WDDR-005 Die Markers: Obverse: None known. Reverse: Die gouge between the T and O in TO. |  |
| Designation | Description | Image |

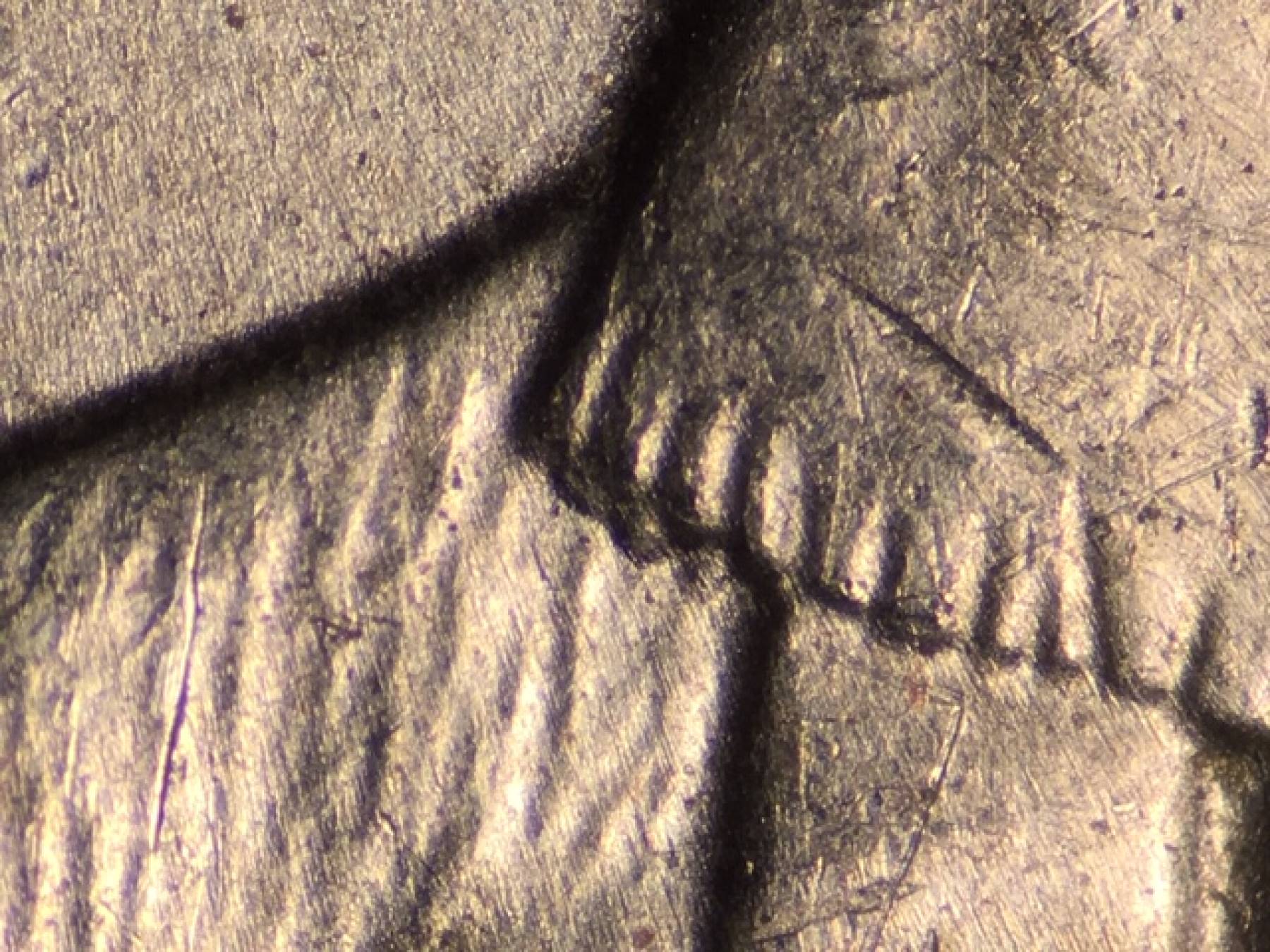

| SDDR-010 | The fringe of the coat to the left of the upper right arm is doubled to the south. Cross-References: WDDR-006 Die Markers: Obverse: None known. Reverse: Die gouge touches the upper left side of the W in DOORWAY. |  |
| Designation | Description | Image |
| SDDR-011 | The upper right arm just below the coat sleeve is doubled to the west. Cross-References: WDDR-003 Die Markers: Obverse: Stage A: Die gouge above the left side of the W in WE to the right of IN. Many long die gouges above the two Ls in DOLLAR. Die gouge between the back of the head and the ER in AMERICA. Stage B: WDDR-003. It is not known whether die gouges around the Ls or the one behind the head is still present. Die gouge near IN still present. New die gouge in the left side of the M in AMERICA. Reverse: Stage A: None known. Stage B: WDDR-003. Die chip formed on the bottom of the T in TO. |  |
| Designation | Description | Image |

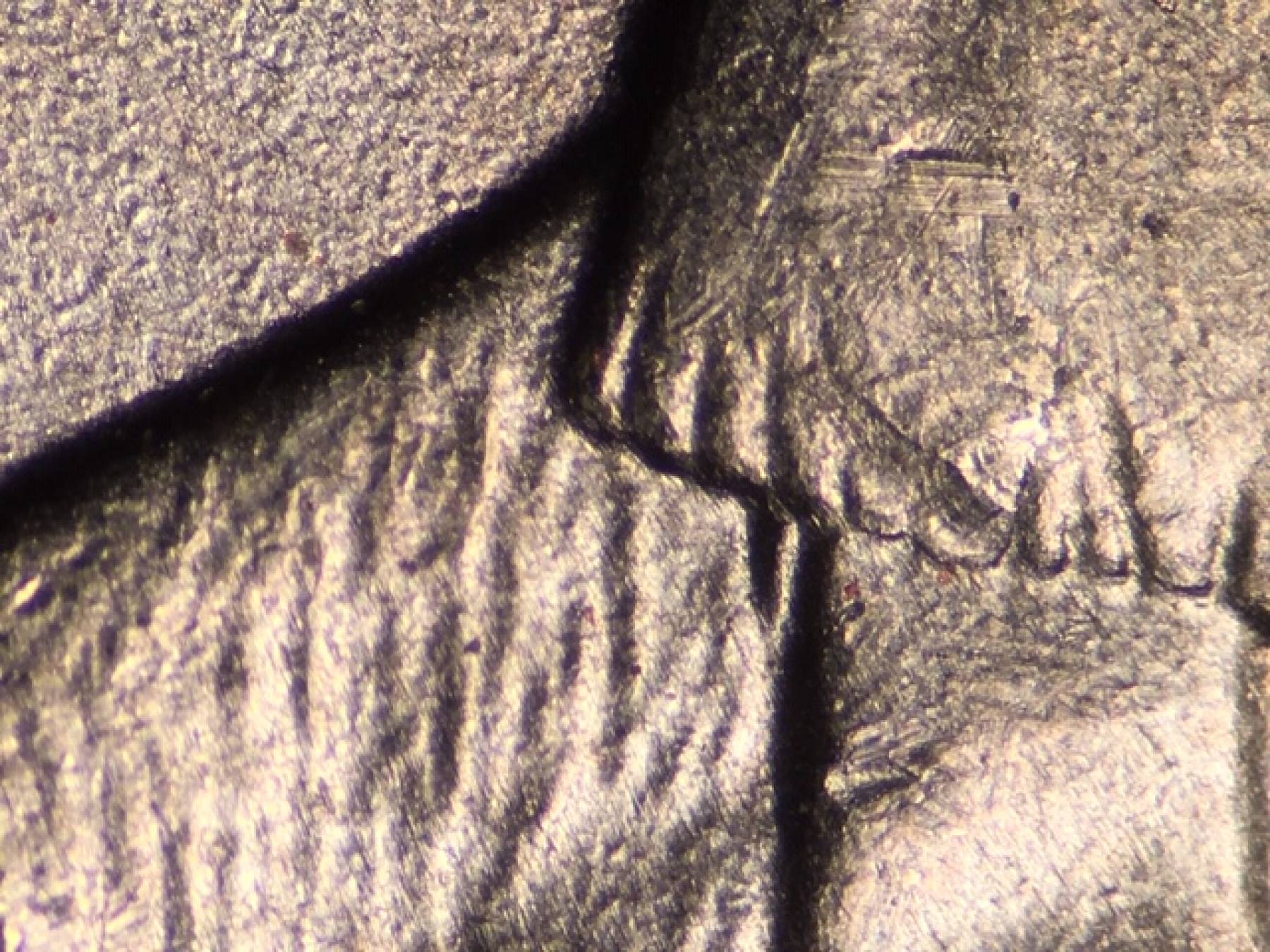

| SDDR-012 | The fringe of the coat to the left of the upper right arm is doubled to the south. Cross-References: WDDR-009/016 Die Markers: Obverse: Die gouge inside the R in DOLLAR. Reverse: Die gouge above the second O in DOORWAY. |  |
| Designation | Description | Image |
| SDDR-013 | The coat on the upper right arm is doubled to the north. Die Markers: Obverse: Die gouge inside the C in AMERICA. Reverse: Die gouge far below the S in WEST. Die gouge below the E in WEST. Die gouge to the left of the T in TO. |  |
| Designation | Description | Image |
| SDDR-014 | The coat on the upper right arm is doubled to the north. Die Markers: Obverse: Die chip above the J in the designers initials JF. Die gouge above the right side of the D in GOD. Reverse: Curved die gouge where the two mountains in the background meet. |  |
